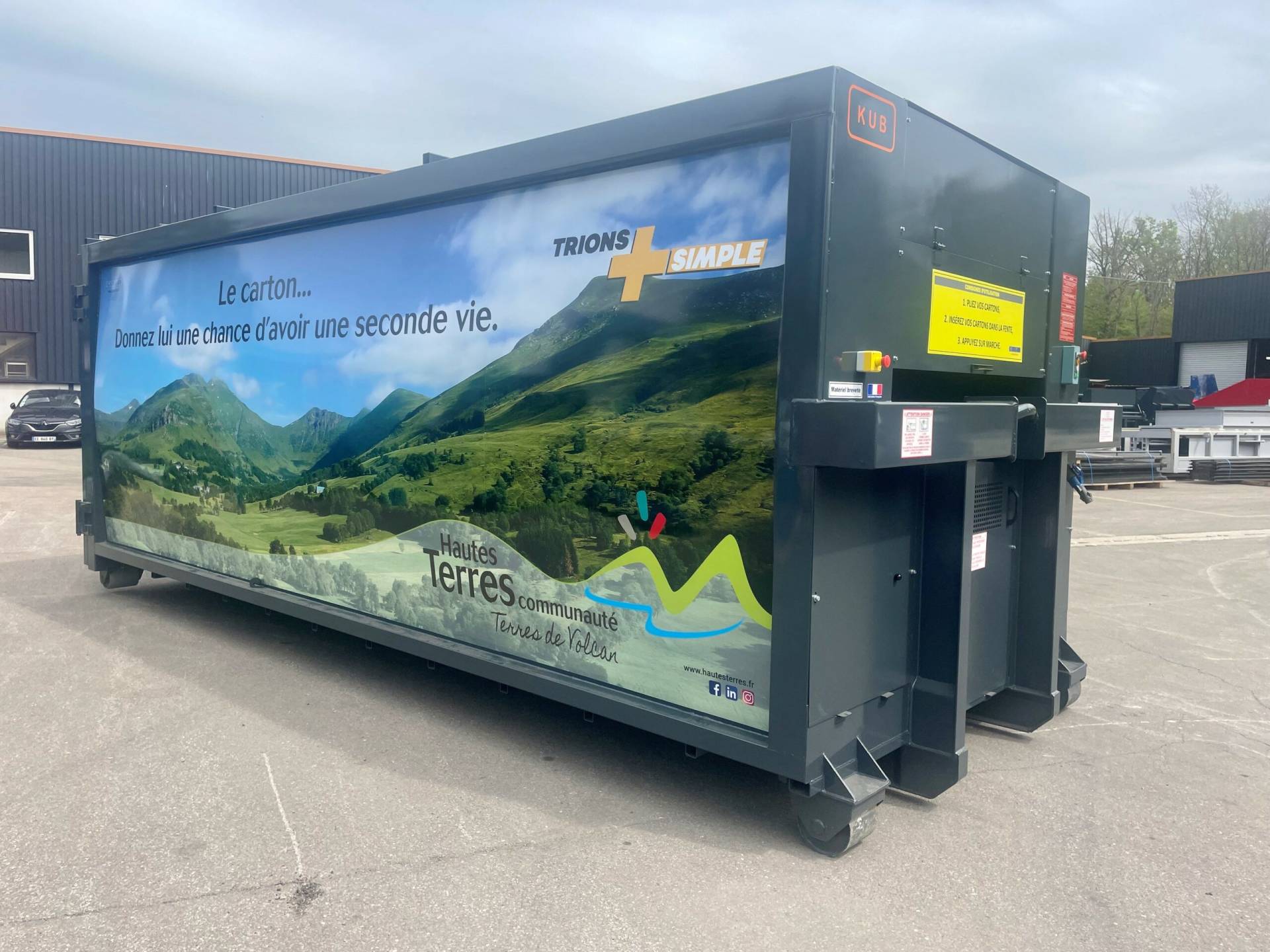

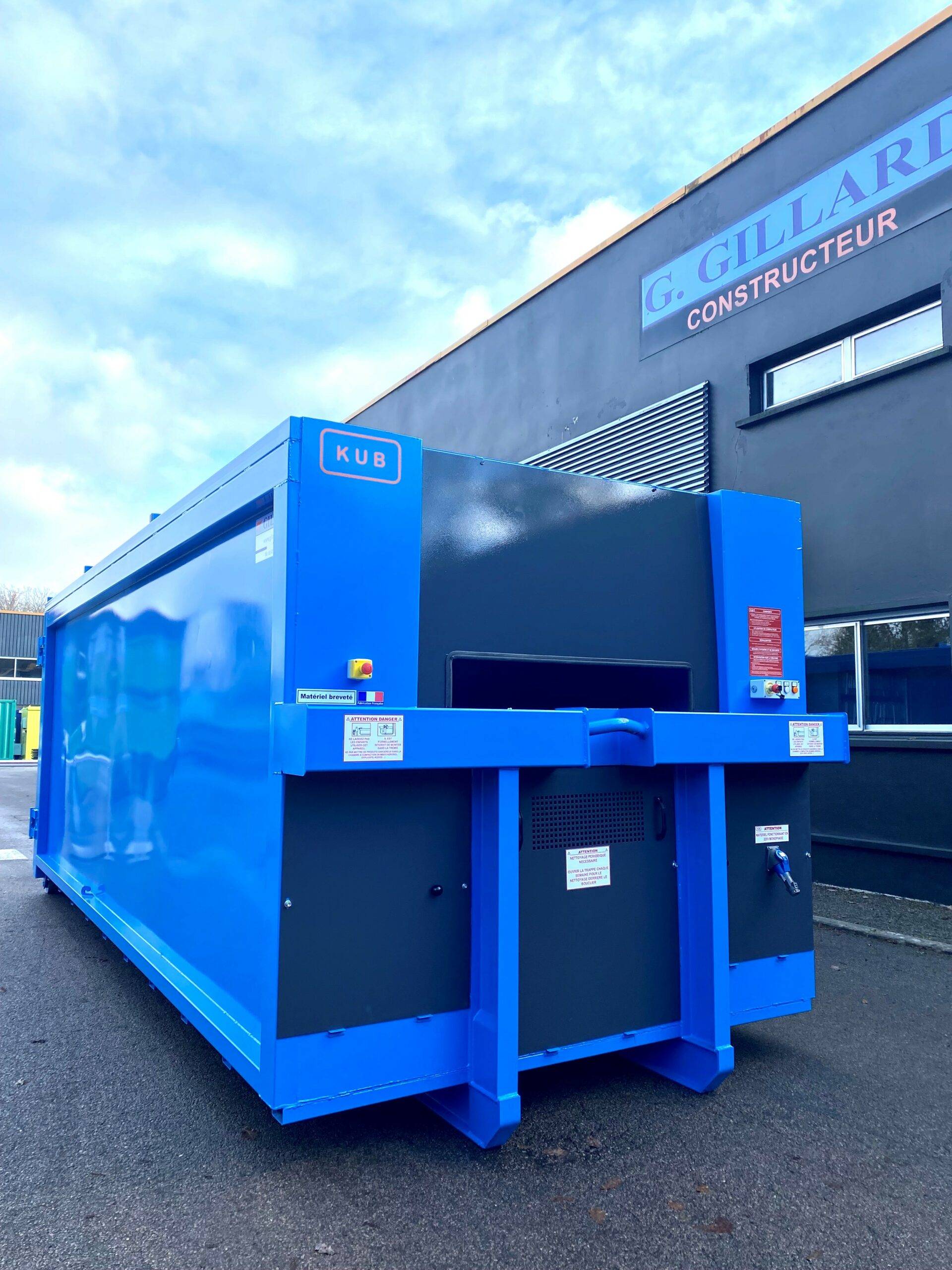

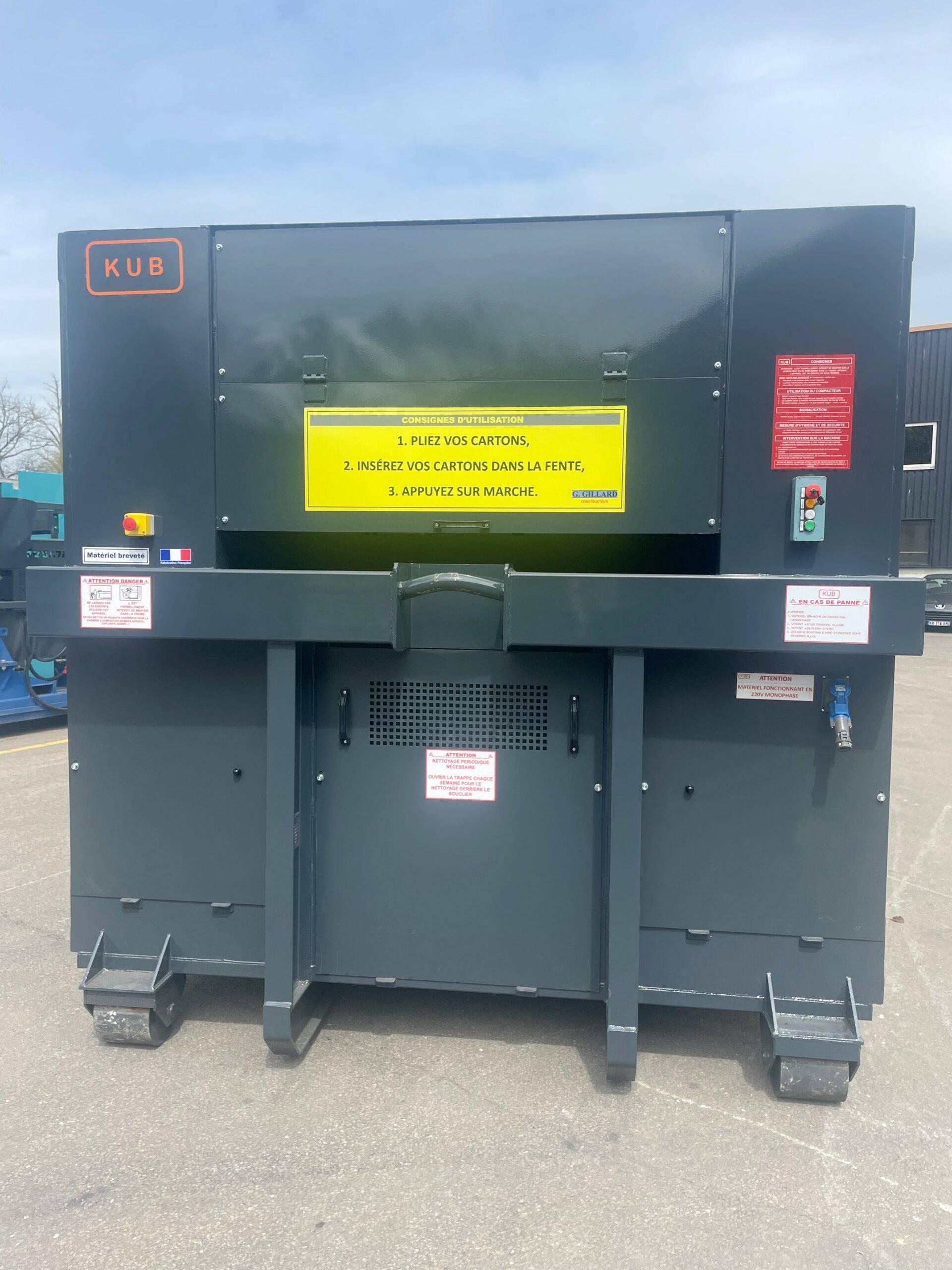

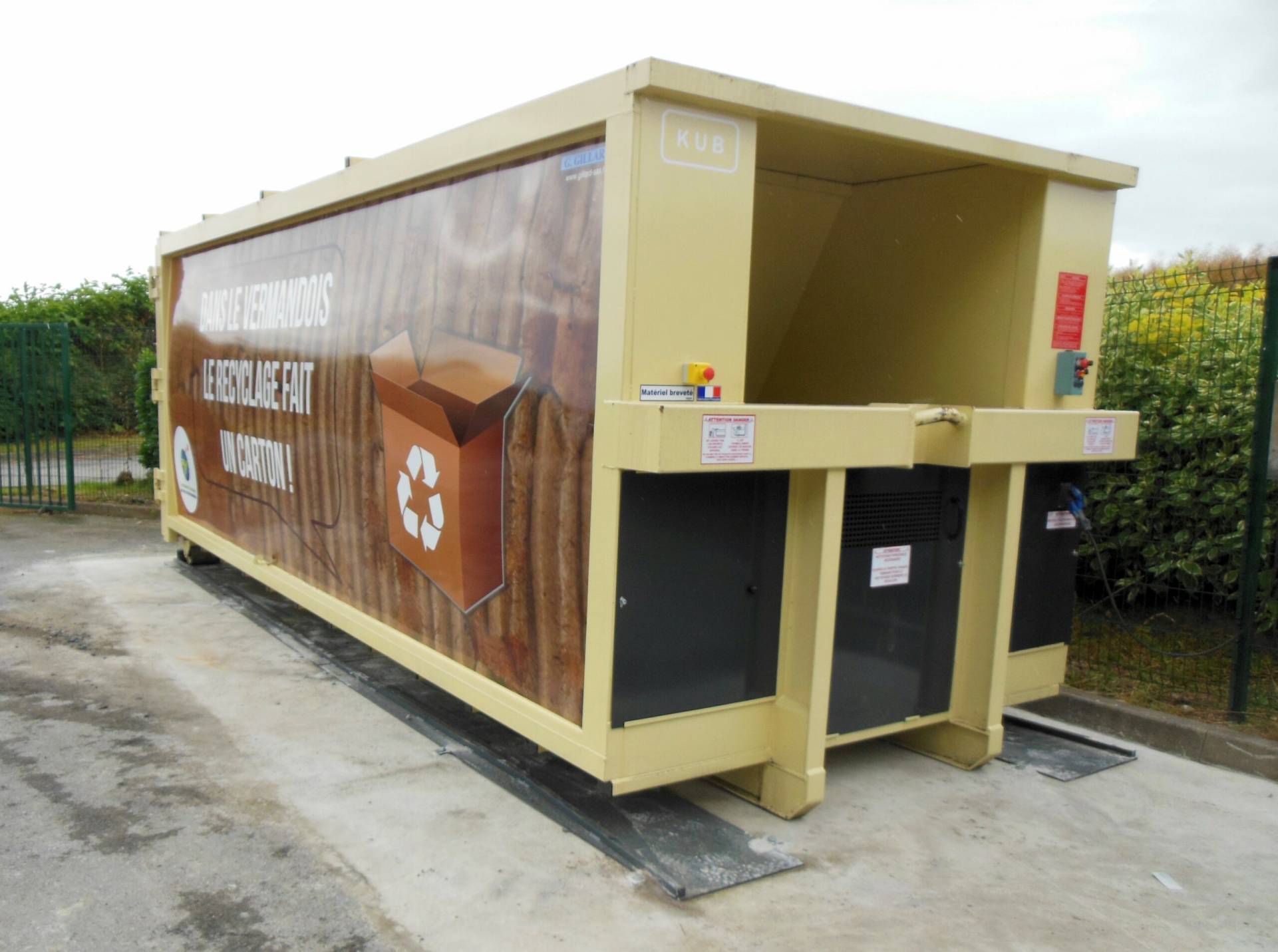

Le 220V KUB monobloc compactor is an innovative solution that effectively replaces 30 m³ skips with sliding or hydraulic roofs. Thanks to its 220 V single-phase power supply, it can be easily installed on almost any site without major electrical work. This model combines ergonomics, compactness and performance in a practical format.
The KUB offers a capacity of 24 m³ of compacted waste, equivalent to 80 to 120 m³ of uncompacted waste, while maintaining dimensions close to those of a 20 m³ compactor or a 30 m³ skip. This configuration significantly reduces transport and operating costs.
Key Performances
-
Useful capacity: 24 m³
-
Equivalent volume of uncompacted waste: 80–120 m³
-
Compaction pressure: 10,5 tonnes
-
Compaction cycle: 77 seconds
-
Loading height: 1500 mm
-
Feed hopper: 2000 × 1500 mm
-
Power supply: 220 V single-phase, 3 kW motor
-
Dimensions (L × W × H): 6350 × 2550 × 2650 mm
-
Empty weight: 4410 kg
Structure and reliability
The compactor incorporates a patented central hydraulic cylinder that fully restores the thrust force for optimal compaction. Robotic production ensures consistent quality and high reliability. The shield prevents waste from passing behind the compacting plate, thus limiting maintenance operations.
-
No hinge pins for less wear
-
Opening roof for easy emptying
-
Anti-reverse shield protecting internal mechanisms
Customization Options
-
DEKO decoration on sides and doors
-
Guide rails
-
Docking with closing plate and remote box
-
Custom painting according to RAL shades
-
Remote management possible
These options ensure aesthetic and functional integration into the customer environment.
Advantages of KUB
-
Simple installation without heavy electrical work
-
Compact and ergonomic, with an optimized format
-
Reduced maintenance thanks to the patented central cylinder
-
Energy efficiency with 3 kW motor
-
Suitable for recyclable and ordinary industrial waste
-
Significant reduction in logistics costs
Invest in the 220V KUB monobloc compactor, is choosing an economical, sustainable and efficient solution, perfectly adapted to the needs of industrial, commercial and logistics sites.
